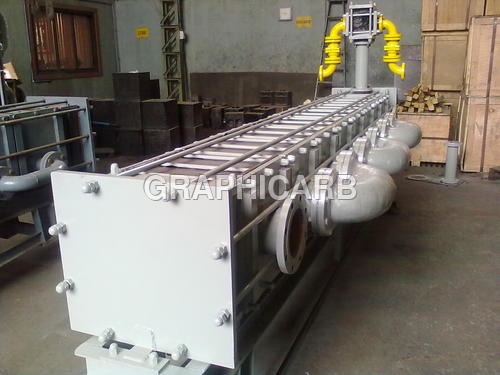

Graphite Sulfuric Acid Dilution Unit

Graphite Sulfuric Acid Dilution Unit

Product Details:

  • Product Type Graphite Sulphuric Acid Dilution Unit
  • Usage For Chemical process industries
  • Material Impervious Graphite
  • Application For Chemical process industries
  • Shape Cubical block type
  • Supply Ability : 50 - 100 Piece Per Month
  • Click to view more

Price And Quantity

  • 1 Piece

Product Specifications

  • Graphite Sulphuric Acid Dilution Unit
  • Impervious Graphite
  • Cubical block type
  • For Chemical process industries
  • For Chemical process industries

Trade Information

  • Ahmedabad , Gujarat
  • 50 - 100 Piece Per Month
  • 1-2 Week
  • Yes
  • As per product requirement
  • Australia, North America, Eastern Europe, Western Europe, Middle East, Central America, South America, Asia, Africa
  • All India
  • ISO 9001 : 2008

Product Description

With an aim to introduce world class product range, we provide our patrons premium quality Graphite Sulphuric Acid Dilution Unit. Our team of skilled professionals manufactures these dilution units using best grade raw materials that enhance their performance and make these suitable for both dilution as well as cooling of acid. Designed with latest production technologies, these dilution units are widely demanded in chemical industry. This Graphite Sulphuric Acid Dilution Unit is highly acknowledged for its following attributes:

  • Reliable performance

  • High productivity

  • Thermal shock resistant

  • Easy to dismantle

Other Information:

Our clients can avail from us the precision engineered graphite sulfuric acid dilution unit that is design and developed using superior quality raw material and advanced manufacturing technologies. It is simultaneously beneficial for both dilution as well as cooling of acid. The unit is high in performance and can withstand various adverse working conditions

Diluting concentrated
sulphuric acid releases, considerable quantities of heat with mixing temperature up to 160c and above, it is therefore beneficial to dilute and cool acid simultaneously.

This can be accomplished in a single operation with graphite block type dilution cum cooling unit, unit consists of mixing head, which provides separate feed for concentrated sulphuric acid and dilution water. Block type cooling unit provided along with it serves to carry off the heat produced in the course of dilution.

The water and acid are combined only in mixing -chamber, from here dilute acid flows through " process channels of the process blocks, these process channels comes indirectly in contact with the service channels through impermeable graphite and using its high thermal conductivity, as a result desired temperature of dilute acid is obtained at outlet.

Using this design, we can get desired state of concentration and temperature of the dilute acid from the acid outlet of the sulphuric acid dilution unit.

Features of sulphuric acid dilution unit

  • Skid mounted unit consists of graphite mixing unit, graphite after cooler, graphite inter connecting pipes, ptfe lined NRV and bends

  • Simple robust and easy to install tough construction.

  • Multiple passes can be provided on service sides. .

  • Graphite has high compressive strength so metal plate apply compressive load on graphit

  • Flexibility of adding more blocks to increase heat transfer area.

  • Easy cleaning because of short channels.

  • Short channel lengths increases turbulence as a result avoids frequent deposits or fouling as compared to shell & tube type heat exchanges of same dimensions, cubical block type heat exchanger provides 2 to 5 times more heat transfer.

  • Working conditions : Upto 5kg / cm2 pressure.
